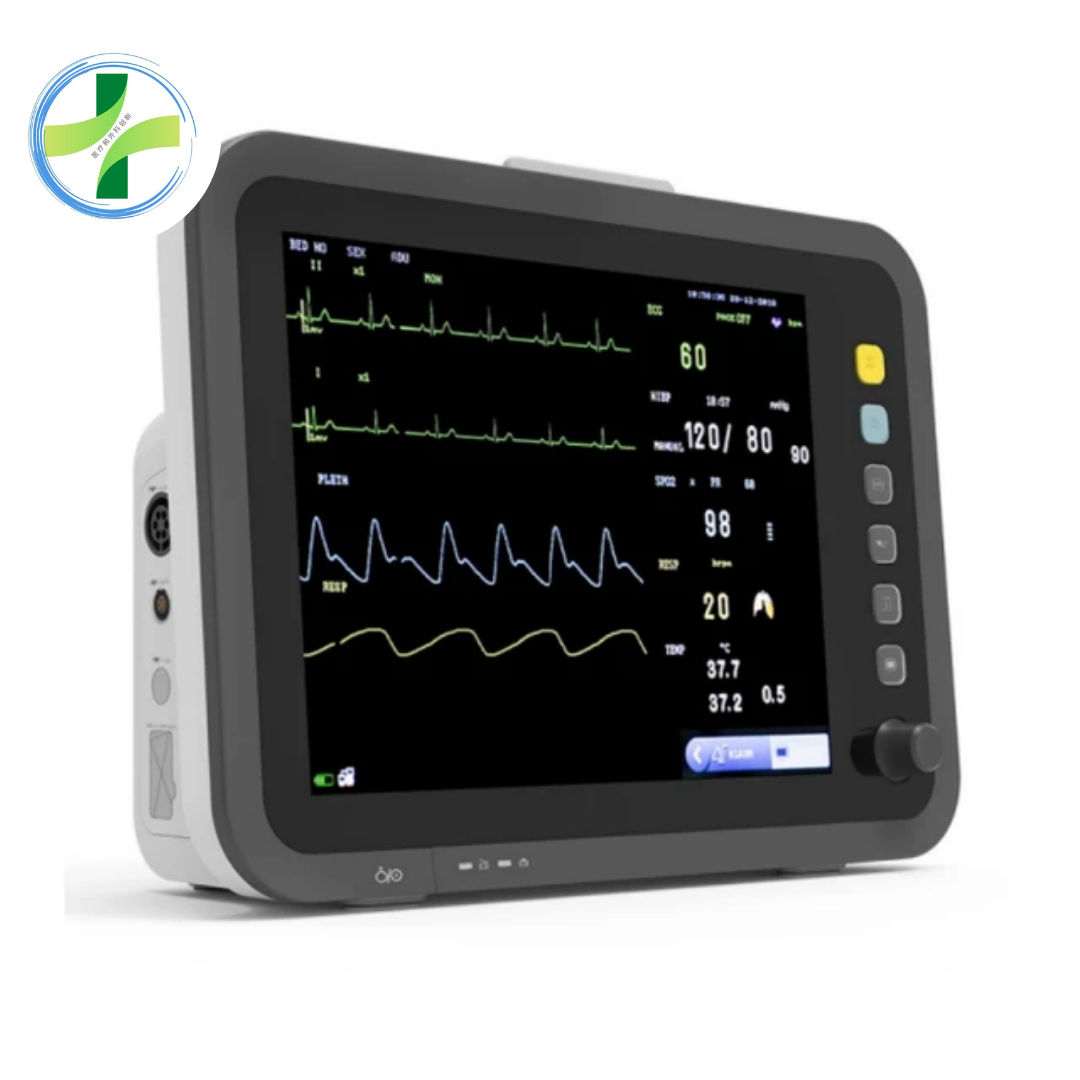

Multi-Parameter Monitor
Multi-Parameter Monitor - Image 2
Multi-Parameter Monitor - Image 3
Multi-Parameter Monitor - Image 4
Add to wishlist

Multi-Parameter Monitor

Original price was: $425.00.Current price is: $325.00.

SKU: RR0041 Categories: , Tags: , , , , ,

Portable Vital Signs Monitor 7 Parameter Monitor Will Trolley.

Description

Standard configuration: ECG、HR、PR、TEMP、RESP、SpO2、NIBP
Screen size:12.1inch
Power: 100-240VAC
MAX input power: 70VA
Fuse: F2AL 250V
Battery: 11.1V 2000mAh Li-battery
Shock resistance degree: CF type Fluid
Resistance degree: IPX1

Product Accessories
(1)ECG cable
(2)ECG electrodes
(3)SpO2 probe
(4)Integrated Earth wire
(5)Power line
(6)Temperature probe
(7)NIBP extension tube
(8)NIBP cuff
(9)Optional parameters: ETCO2、Touch screen、Built-in recorder、Monitor bracket trolley, Monitor wall bracket

Product Features
1.12.1-inch TFT color LCD display. 2.Suitable for Adult, Children in ambulances,operating rooms. 3.Multi-channel waveform display. 4.ST segment analysis. 5.Alarms sound and light can be set. 6.Record and return electrocardiogram waveform. 7.Built-in rechargeable lithium battery. 8.With data power-off storage function. 9.Anti-fibrillation, anti-high-frequency electrosurgical interference. 10.Three-application mode: monitoring, diagnosis, operating. 11.Network connection and center monitor system.

Product Description
RM01-001 Factory Patient monitor ECG ETCO2 IBP hospital monitor multi-parameter with Built-in printer

Model: RM01-001 Multi-parameter Patient Monitor RM01-001 Rayman Factory Patient machine ECG ETCO2 IBP hospital monitor multi-parameter with Built-in printer

Standard parameter configuration: ECG, heart rate, respiratory oxygen, pulse rate, non-invasive blood pressure, body temperature; Optional extended parameter configuration: end-respiratory carbon dioxide, invasive blood pressure; Optional configuration: touch screen, built-in recorder, monitor bracket cart or wall rack.
Optional Parameters
Main/side-stream ETCO2, 2-BP, 12-lead ECG, C.O.,Printer, Central Monitoring Software, Wall bracket, Trolley.  RM01-001 Rayman Factory Patient machine ECG ETCO2 IBP hospital monitor multi-parameter with Built-in printer


Parameters; ECG (5 lead), Respiration, NIBP, SpO2, Heart rate, Temperature

Built in rechargeable battery, 6 hours continuous working
12.1 inches TFT LCD with resolution of 800×600
150 hours trend data can be stored of the whole monitored parameters

Anti-electro surgical interference and defibrillation, fits various of environments

Optional attachments including ETCO2, touch panel, newborn attachments, etc.
Built-in recorder and various record modes are available (the optional install)
One year guarantee with one year malfunction change promise, lifetime maintenance RM01-001 Rayman Factory Patient machine ECG ETCO2 IBP hospital monitor multi-parameter with Built-in printer
Optional print output function, support alarm trigger printing;
Anti-defibrillation and anti-high-frequency electrotome interference;
Support wired or wireless central monitoring system suitable for ambulances, operating rooms, wards and other occasions;
Wide range of application, adults, children, newborns can be used.
Supports multiple interfaces: standard interface, large font interface, trend coexistence interface, oxyCRG interface, and blood pressure list interface;
Support for multiple languages: Chinese, English, Spanish, Polish, Turkish, French;
Built-in high capacity battery, lasting power, convenient transfer of patients;
Detailed Images

Dual Alarm Light

All-in-one

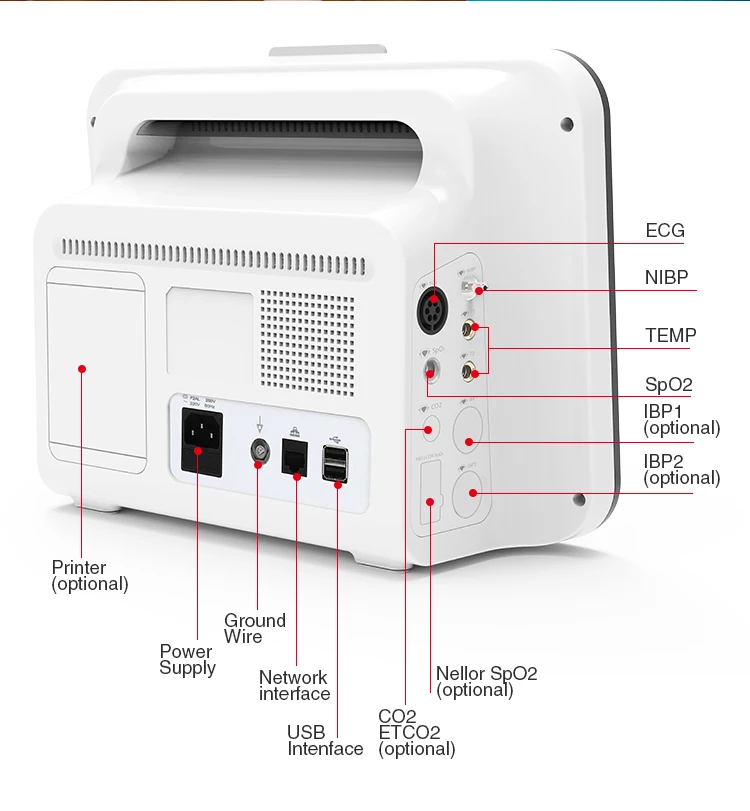

Various Extensible interfaces
Built-in Recorder & WLAN modular (option) RM01-001 Rayman Factory Patient machine ECG ETCO2 IBP hospital monitor multi-parameter with Built-in printer
Size
12*11.4*6.4 inch
Weight
5kg
Electrical Specification
100-240v AC,50/60Hz
Max Input Power
70VA
Battery
11.1V 2200mAh rechargeable lithium battery
Standard configuration
SpO2,PRNIBPECG,RESPTEMP
Optional Configuration
Nellcor SpO2, 2-1BP, ETCO2, Touch screen, Built-in Thermal Printer

Additional information

Weight 6 kg
Dimensions 38 × 35 × 30 cm
